Flexible Cables

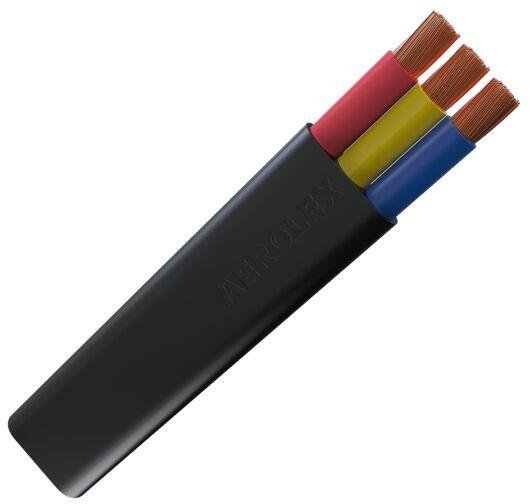

Leading Manufacturers, Exporters, Wholesaler and Retailer of H07VVH6-F, Multi Core Flexible Cables, Rubber 3 & 4 Core Double Sheathed Round Submersible Drop Cables, Single Core Flexible Cables and Submersible Pump Cable from Ahmedabad.
| Business Type | Manufacturer, Exporter |
| Working Voltage | Uo/U 450/ 750 V, 600/ 1000 V, 650/1100 V |
| Temperature Range | -15°C to 70°C |
| Test Voltage | 3000 V |
| Product Code | 85446020 |
| Payment Terms | L/C |
| Packaging Details | 100/200 Meters Roll 500/1000 Drum Wooden Reels or as per Customer Requirements |
Product Details Working Voltage Uo/U 450/ 750 V, 600/ 1000 V, 650/1100 V Temperature Range -15°C to 70°C Cable Colour Blue /black , other Colour On Request Test Voltage 3000 V Core Colour As per Asian/european Colour Code Cable Nomenclature/Norme : H07VVH2-F, S07VVH2-F, A07VVH2-F, A07VVH6-F, S07VVH6-F, PVC FLAT CABLE Standards : IS 694, BS 6500, IEC 60227, CEI 20-20, VDE 0281, SABS 1574, AS 3191, AS/NZS 5000.1, HD 21.1, NF C 32-201, French Standard 32-102-1 Features : Tough & flexible cable with excellent moisture, abrasion & weather resistance., Safe, Reliable and power saving., Excellent Wet Electrical Properties. Applications : To supply power to submersible pumps in a deep bore well for Irrigations Drinking Water Supply Mine Dewatering Industries Swimming Pools Fountains Offshore Drilling Rigs Sewage Treatment Plants Sea Water Filtration Plants Aquariums . Construction :
Conductor :High purity electrolytic grade bright annealed flexible bunched bare, copper conductor according to international standards like IS 8130, BS 6360, IEC 60228 & VDE 0295.
Insulation : Specially developed dielectric grade PVC Compound impervious to water, oils, grease etc.
Sheath : Sheathing by High abrasion resistant tough & flexible PVC Compound.
| Business Type | Manufacturer, Exporter, Supplier |
| Insulation | Specially Developed Dielectric Grade Pvc Compound. |
| Standard Colors | Grey, Red, Blue, Black, other Colors as per Requirements. |
| Applications | Wiring of Panels for Use in High Ambient Temperatures. |
| Sheath | Specially Developed Tough and Flexible Pvc Compound. |
| Standards | IS 694, BS 6500, IEC 60227, CEI 20-20, VDE 0281, SABS 1574, AS 3191, AS/NZS 5000.1, HD 21.1, NF C 32 |
| Working Voltage | 450/ 750 V, 600/ 1000 V, 650/1100 V |
| Test Voltage | 3000 V |
| Temperature Range | -15°C to 70° C |
Conductor : High purity electrolytic grade bright annealed flexible bunched bare copper conductor according to international standards like IS-8130, BS-6360, IEC-228 & VDE-0295..
| Business Type | Manufacturer, Exporter |
| Standards | BS 6007, IEC 60245, CEI 20-19, VDE 0282, AS 3191, AS/NZS 5000.1, HD 22.1, , NF C 32-201, French Standard 32-102-16 |
| Working Voltage | 450/ 750 V, 600/ 1000 V, 650/1100 V |
| Test Voltage | 3000 V |
| Temperature Range | -15°C to 70°C |
| Core Colour | As per Asian/european Colour Code |
| Cable Colour | Blue /black , other Colour On Request |
| Cable Nomenclature/Norme | S07RN-F, A07RN-F, H07RN-F, S1BB-F, H07RN8-F, H07BN4-F, H07ZZ-F, H07BQ-F, S1BC4B-F, S07BB-F, S1BC4N8-F, S1BN8-F, S1RN8-F,H07RN-F OR, 07BN2-F, UG7OR, RG7OR, NAUTILUS 500, S07RC4N8-F, S1RC4N8-F , AD8 |
| Product Code | 85446020 |
| Port | AHMEDABAD |
| Payment Terms | L/C, D/A, D/P, T/T, Western Union, MoneyGram, Other |
| Delivery Time | 10 Days Or Delivery can be scheduled as per requirement. |
| Packaging Details | 100/200 Meters Roll 500/1000 Drum Wooden Reels or as per Customer Requirements |
Features :
- Suitable for continuous immersion in water for AD8 applications for submersible pump
- Tough & flexible cable with excellent moisture, ozone, abrasion, chemical & weather resistance.,
- Safe, Reliable and power saving.,
- Excellent Wet Electrical Properties.
Applications :
Tough Rubber cable for installation inside or outside in dry, damp or wet environments. Suitable for submersible motors and pumps applications for immersion in fresh water, drinking water, salt water, hot water, thermal water, waste water, storm water, oily water and sewage contaminated water. For us a submersible pump cable for flexible power supplies and controlling in farm irrigation, industries, drinking water supply plants, mines, quarries, swimming pools, fountains, sewage treatment plants, desalination plants, sea water filtration plants, aquariums, offshore drilling rigs, marine applications etc. The cables are ozone, UV, sunlight and weather resistant.
| Business Type | Manufacturer, Exporter, Supplier |
| Standard Colors | Grey, Red, Blue, Black, other colors as per requirements. |
| Applications | Wiring of Panels for Use in High Ambient Temperatures. |
| Standards | IS 694, BS 6500, IEC 60227, CEI 20-20, VDE 0281, SABS 1574, AS 3191, AS/NZS 5000.1, HD 21.1, NF C 32 |
| Working Voltage | 450/ 750 V, 600/ 1000 V, 650/1100 V |
| Test Voltage | 3000 V |
| Temperature Range | -15°C to 70°C |
Features :
- Conductor : High purity electrolytic grade bright annealed flexible bunched bare copper conductor according to international standards like IS-8130, BS-6360, IEC-228 & VDE-0295.
- Insulation : Specially developed dielectric grade PVC Compound
| Business Type | Manufacturer, Exporter |
| Country of Origin | 220V, 380V, 440V |
| Certification | CE Certified, ISO 9001:2008 |
| Application | Submersible |
| Theory | Centrifugal Pump, Electromagnetic Pump, Reciprocating Pump, Rotary Pump |
| Standards | BS 6920, WRAS, KTW, W270, ACS, D. M. 174/04, BS 6007, IEC 60245, CEI 20-19, VDE 0282, AS 3191, AS/NZS 5000.1, HD 22.16,HD 22.12 , NF C 32-201, French Standard 32-102-16, AD8 |
| Core /Cable Colour | Core colour: as per Asian/European colour code Cable colour: Blue |
| Working Voltage Uo/U | 450/ 750 V, 600/ 1000 V, 650/1100 V |
| Test Voltage | 3000 V |
| Temperature Range | -40dC to 90dC |
