| Business Type | Manufacturer, Exporter |
| Standards | HD 22.16, HD 22.12, BS 6007, IEC 60245, CEI 20-19, VDE 0282 PART 16, AS 3191, AS/NZS 5000.1, NF C 32-201, French Standard 32-102-16 |
| Core Colour | As per Asian/european Colour Code |
| Cable Colour | Blue /black , other Colour On Request |
| Click to view more | |
Product Details
Working Voltage Uo/U
450/ 750 V, 600/ 1000 V, 650/1100 V
Test Voltage
3000 V
Temperature Range
-15°C to 70°C
Cable Nomenclature/Norme
S07RN-F, A07RN-F, H07RN-F, S1BB-F, H07RN8-F, H07BN4-F, H07ZZ-F, H07BQ-F, S1BC4B-F, S07BB-F, S1BC4N8-F, S1BN8-F, S1RN8-F,H07RN-F OR, 07BN2-F, UG7OR, RG7OR, NAUTILUS 500, S07RC4N8-F, S1RC4N8-F, AD8
Product Code
85446020
Port
AHMEDABAD
Payment Terms
L/C, D/A, D/P, T/T, Western Union, MoneyGram, Other
Delivery Time
10 Days Or Delivery can be scheduled as per requirement.
Packaging Details
100/200 Meters Roll
500/1000 Drum
Wooden Reels or as per Customer Requirements
500/1000 Drum
Wooden Reels or as per Customer Requirements
Applications :
Tough Rubber cable for installation inside or outside in dry, damp or wet environments. Suitable for submersible motors and pumps applications for immersion in fresh water, drinking water, salt water, hot water, thermal water, waste water, storm water, oily water and sewage contaminated water. For us a submersible pump cable for flexible power supplies and controlling in farm irrigation, industries, drinking water supply plants, mines, quarries, swimming pools, fountains, sewage treatment plants, desalination plants, sea water filtration plants, aquariums, offshore drilling rigs, marine applications etc. The cables are ozone, UV, sunlight and weather resistant.
Construction :
- Conductor : High purity electrolytic grade bright annealed flexible bunched bare, copper conductor according to international standards like IS 8130, BS 6360, IEC 60228 & VDE 0295.
- Insulation : Oil & Water Resistant EPR/EPDM/XLPO based Elastomer Compound
- Sheath : Tough & Flexible EPR/EPDM/NBR based Elastomer Compound

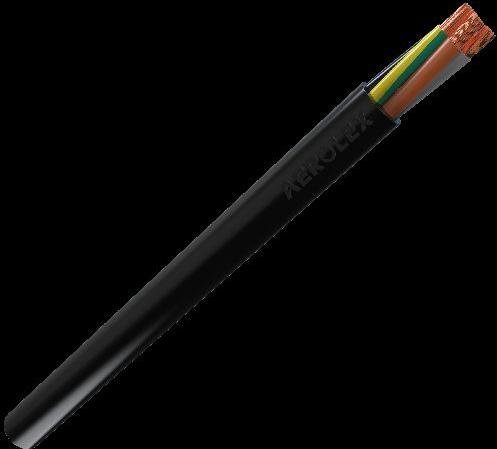

Looking for "H07RN-F, H07BN4-F and H07RN8-F Rubber Round Drop Cables" ?
